Multi-Service Chilled Beams (MSCB's) provide all the cooling and heating benefits with the excellent levels of thermal comfort that you get with standard Chilled Beam's, but can also feature; lighting, PIR sensors, smoke detectors, sprinklers or any other building service required, in a single pre-fabricated unit.
Utilising either 'Radiant' Passive or Active Chilled Beam Technology, MSCB's are designed to the bespoke requirements and aesthetics of any building.

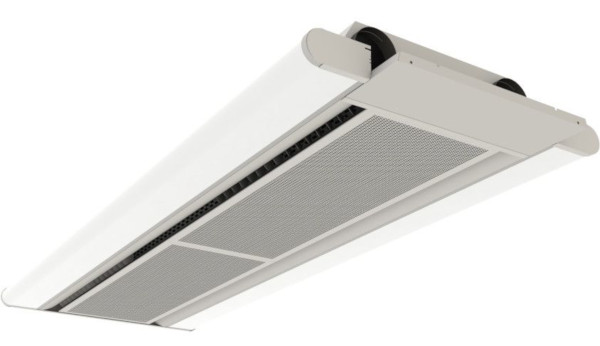

Active Multi-Service Chilled Beams
Based on Active Chilled Beam technology, Active Multi-Service Chilled Beams (MSCB's) are connected to both the ventilation supply air ductwork and the chilled water supply. Low temperature hot water (LTHW) can be used as a separate supply (4 pipe) in this system for heating.
A main air handling unit supplies fresh air into the various room areas through the Chilled Beams, which uses the primary air supply to induce room air into the beams heat exchanger. The induced air is then re-circulated into the room, along with the fresh air supplied by patent protected burst nozzle slots along the beam.

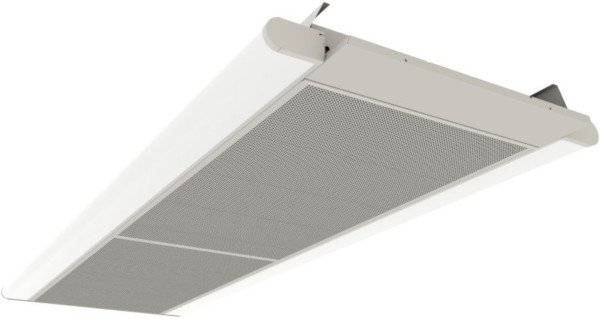

Passive Multi-Service Chilled Beams
Based on 'Radiant' Passive Chilled Beam technology, Passive Multi-Service Chilled Beams (MSCB's) work purely using chilled water supply to employ both convective (60%) and radiant (40%) principles which are designed to deliver high cooling duties with minimal air movement within the occupied zone.
The ability to cool by radiant means that Passive MSCB's can provide 40% more cooling at the same air movement velocities when compared to traditional finned coiled batteries. They are ideal where there is a requirement to provide the best possible occupancy comfort levels and excellent energy efficiency.

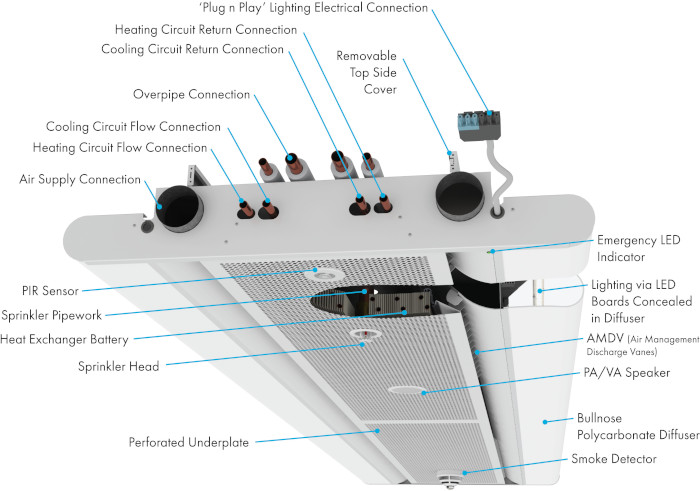

Active & Passive MSCB Design Options
- Cooling
- Heating(Active)
- Electrical Compartmentation
- Up-lighting
- Direct lighting
- Emergency lighting
- Control valves
- Sprinklers
- Acoustic insulation
- Smoke detectors
- Lighting sensors
- Distribution Ductwork
- Fresh air (Active)
- PA/VA speakers
- Distribution water pipes
Key Benefits of MSCB's
- Ideal where floor-to-slab height is minimal
- Low running costs – minimal maintenance requirements
- Delivered many services in a single unit – so reducing costs
- Optimum levels of occupancy thermal comfort
- Beam aesthetic can be customised to client requirements
- 100% factory tested services delivered 'Plug n Play' to reduce on-site commissioning time
If you require any further information, or have a project to discuss, please contact us on 646-571-2151 or sales@ftfgroup.us as our technical team are here to assist.
